Compound Balance Weave Conveyor Belts are also called Tight Spiral Link Belt,Compund Balanced Belt,Cord Weave Belt and Furnace Curtain.
Features:
-
High resistance against acid, alkaline, chemical, abrasion and corrosion.
-
Capable to work regardless of high temperatures.
-
Smooth conveying surface minimize marks and provide easy accurate conveying.
-
Long service life.
Applications:
-
Biscuits, tortillas, cookies and crackers baking
-
Heat treating of small products.
-
Hardening, tempering, quenching.
-
Cleaning, drying, cooking, freezing and salting.
-
Glass works, electrotechnical industry.
-
Serving as pasteurizing belt, furnace belts, etc.
Styles:

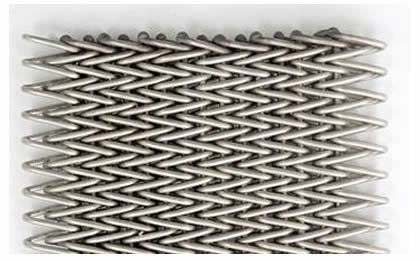

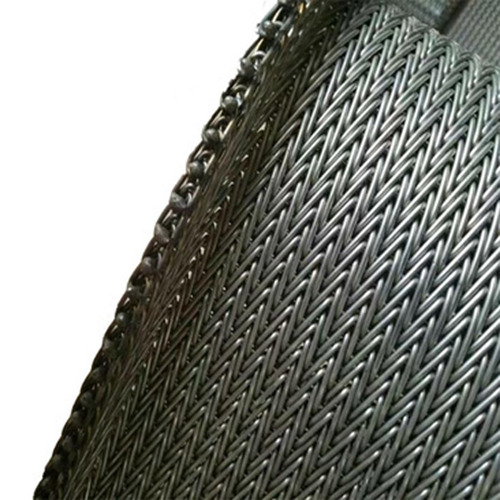

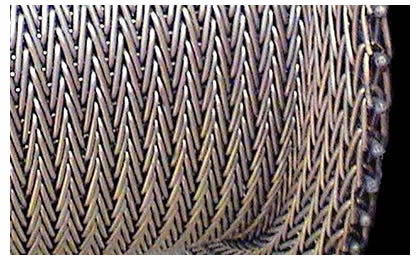

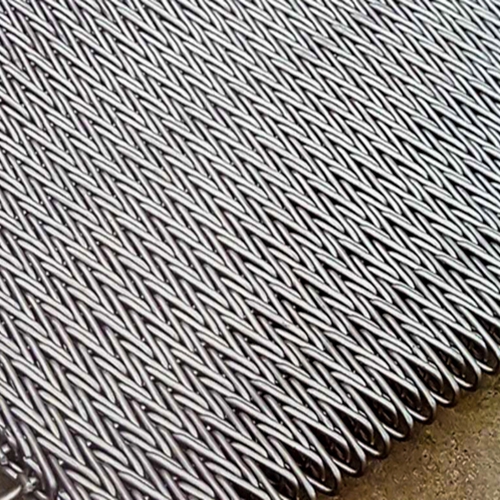

Compound weave conveyor belts are available in round spiral wire or flat spiral wire as your requirements. Meanwhile, it can be manufactured with upturned edge or standard welded edge as shown in the pictures for you to choose from.
Details:
-
Material: carbon steel, SS 201, SS 304, SS 316, SS 314.
-

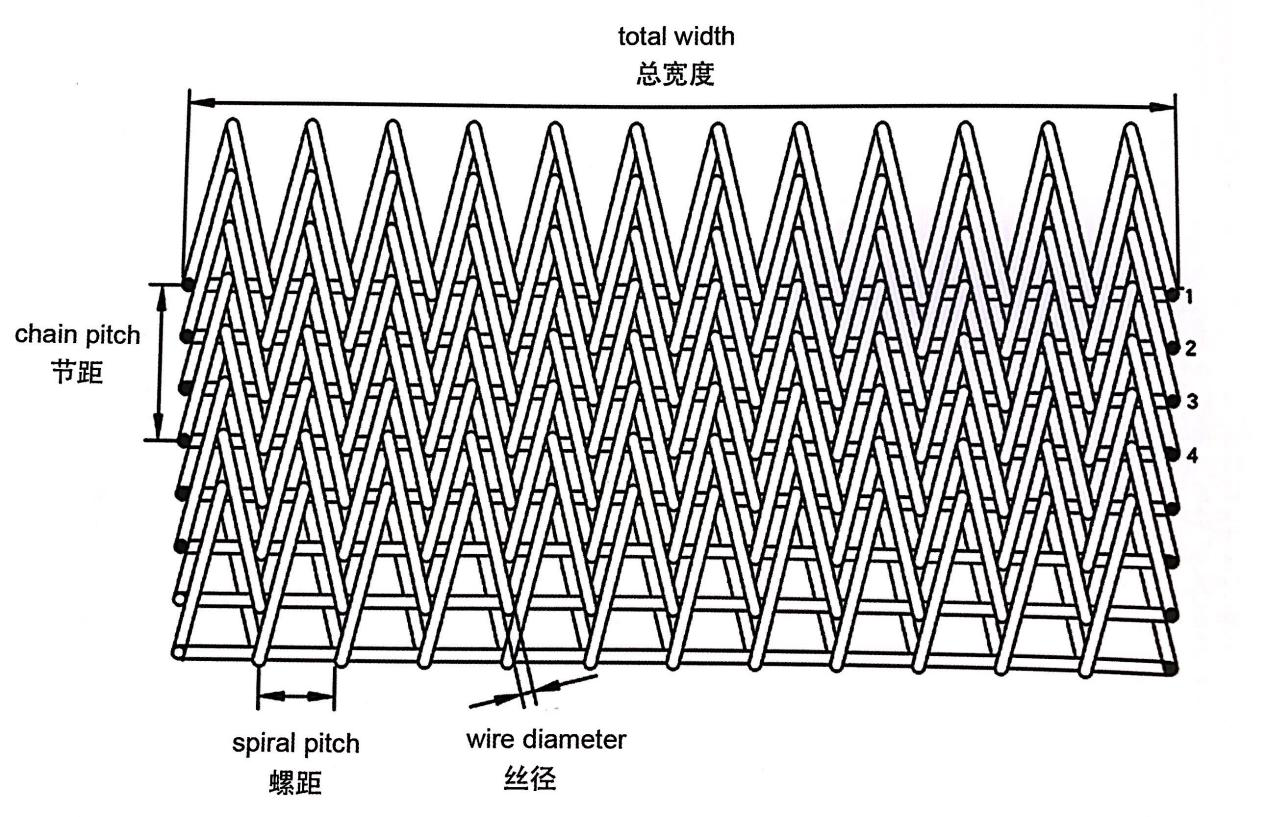

Pitch of spiral wires: 6mm to 20mm.
-
Pitch of cross rods: 6mm to 20mm.
-
Wire diameter: 1.2 mm, 1.4 mm, 1.5 mm, 1.6 mm, 1.8 mm, 2 mm, 2.5 mm, 3 mm.
-
Belt width: 200 mm to 3,000 mm.
-
Diameter of cross wire: 0.9 mm to 2.6 mm.
-
Cross rod number per pitch: 3, 4, 5 or 6 as your request.
-
Temperature range: -50 °C to 1,150 °C.
-
Special specifications are available.
-
