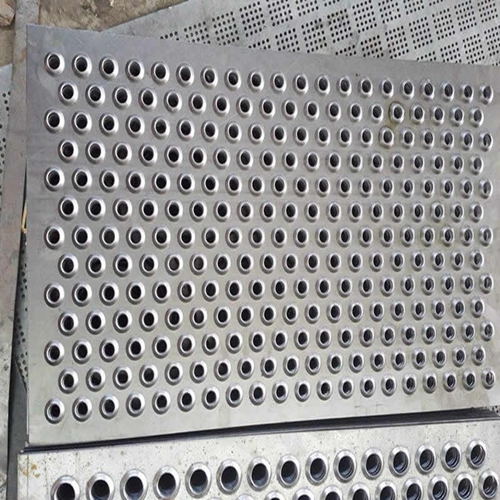

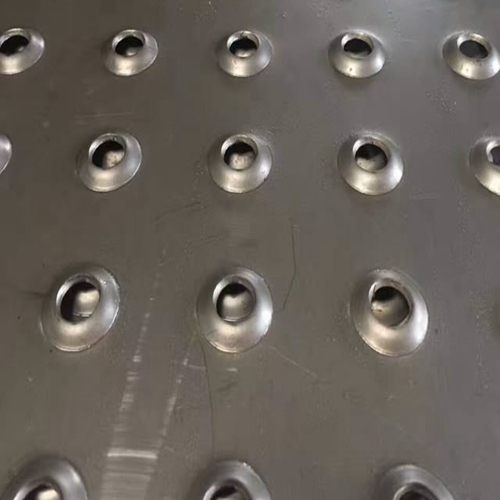

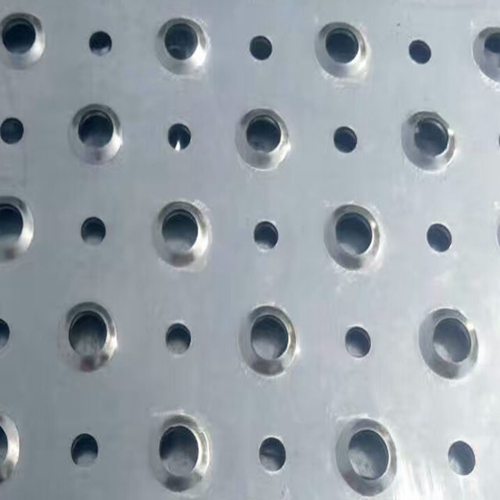

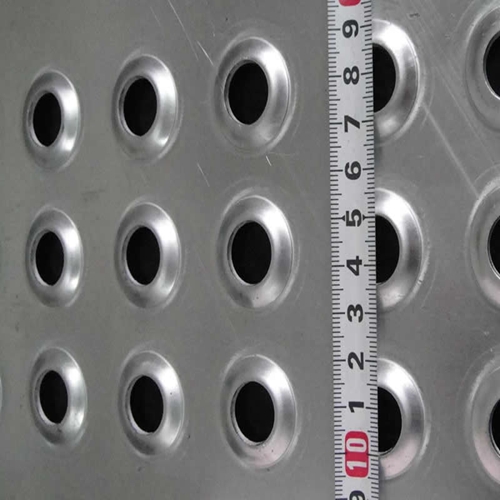

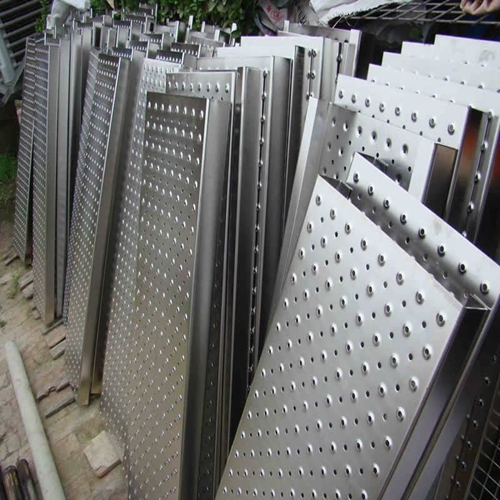

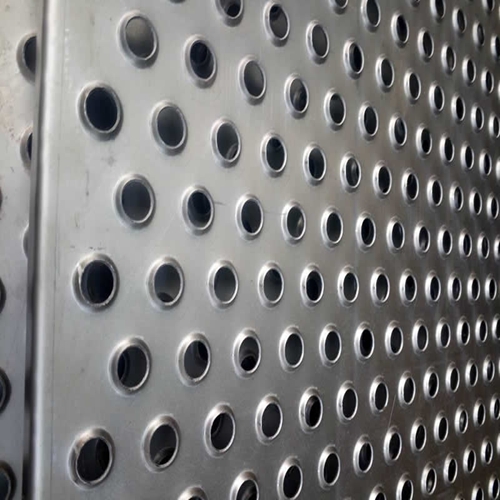

Round Hole Anti Skid Plate

The circular hole antiskid plate is different from the circular hole net. On this basis, there is an additional bulging process. If a lot of bulging holes are punched on a plate, the sheet will not be flat because of the cumulative punching shear stress. The material around the hole will deform downward each time the punching drum starts, resulting in tensile stress on the upper surface of the sheet metal and compressive stress on the lower surface. For a small number of punches, the effect is not obvious, but when the number of punches increases, the tensile and compressive stresses accumulate somewhere until the material deforms.

It has many advantages including: anti-rust, anti-skid, anti-corrosion, durable application and beautiful surface. and widely used in sewage treatment, power plant, snow, stair step, anti-skid pedal and many other anti-skid areas.

Material: Galvanized plate, stainless steel panel.

Thickness: Henerally 2mm, 2.5mm, 3.0mm

Height: 20mm, 40mm, 45mm, 50mm, customized

Length: 1m, 2m, 2.5m, 3.0m, 3.66m

Production technique: Punching, cutting, bending, welding

Features:
Corrosion resistance and  Rust resistance.
Anti-slip resistance and Good air circulation.
Good drainage performance and Easy to install and uninstall.
High strength-to-weight performance and Durable and long lifetime.

Use: Anti-skid plate can be widely used in sewage treatment, power plant, snow, stair step, antiskid pedal, and many other anti-skid areas.
