Pure Metals Wire Mesh

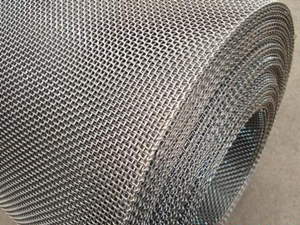

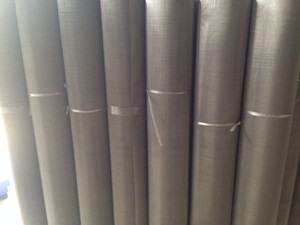

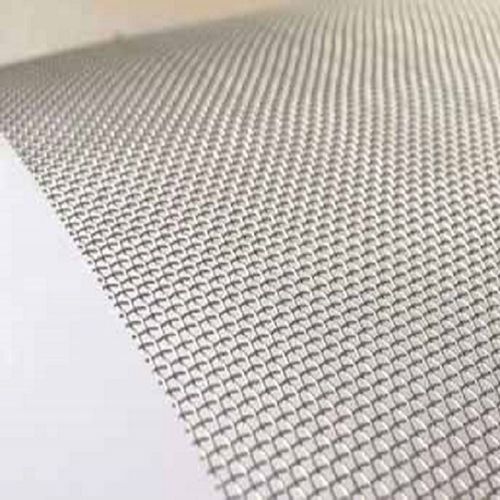

Titanium Wire Mesh

Material:Gr1,Gr2 or titanium alloy
Mesh : 9-150Mesh
Diameter: 0.07mm-0.8mm
Usage: Aerospace, Medical and Plating etc.
Description: Titanium mesh can be applied to high temperature resistant filter, shipbuilding, war industry manufacturing, chemical filter, mechanical filter, electromagnetic shielding wire mesh, mesh, high tempera
INQUIRY EMAIL

Titanium Wire Mesh

1.Material:Gr1,Gr2 or titanium alloy

2.Type: woven mesh type and expanded mesh type

3.Weave Pattern:plain weave,twill weave(square hole shape)

Two types of Titanium:

CP Titanium Grade 1 – UNS R50250 – softest titanium, is resistant to corrosion, has high ductility. Characteristics include high impact toughness, cold forming and welding properties. Applications: Medical, Chemical processing, Architectural and Medical.

CP Titanium Grade 2 – UNS R50400 – has moderate strength, is resistant to corrosion and oxidation and has excellent cold forming characteristics. Applications: Automotive, Medical, Hydro Carbon processing, Architectural, Power generation, Automotive and Chemical processing.

Wire Mesh (Wires / In.)	Wire Dia.	Type Weave	Width Opening	% Open Area
9 x 9	0.032	Plain	0.0791	50.7
16 x 16	0.006	Plain	0.0565	81.7
18 x 18	0.011	Plain	0.0446	64.3
20 x 20	0.003	Plain	0.047	88.4
20 x 20	0.0118	Plain	0.0382	58.4
20 x 20	0.015	Plain	0.035	49
26 x 26	0.01	Plain	0.0285	54.8
30 x 30	0.004	Plain	0.0293	77.4
30 x 30	0.01	Plain	0.0233	49
35 x 35	0.008	Plain	0.0206	51.8
35 x 35	0.009	Plain	0.0196	46.9
40 x 40	0.005	Plain	0.02	64
40 x 40	0.007	Plain	0.018	51.8
45 x 45	0.009	Twill	0.0132	35.4
50 x 50	0.004	Plain	0.016	64
50 x 50	0.004	Twill	0.016	64
60 x 60	0.007	Twill	0.0097	33.6
60 x 60	0.009	Twill	0.0077	21.2
80 x 80	0.005	Plain	0.0075	36
100 x 100	0.002	Plain	0.008	64
100 x 100	0.003	Plain	0.007	49
120 x 120	0.004	Twill	0.0043	27
150 x 150	0.0027	Twill	0.004	35.4
